Connecting the receipt printer Xprinter XP-C58H USB+Ethernet to work in a local network

1. Downloading Drivers and Utilities

• Download driver version V7.17 (available from the product card).

• Download the Xprinter Test utility from the official website.

2. Connecting the Printer:

• Connect the printer via USB cable.

• Install the driver and perform a test print.

3. Setting up through Xprinter Test:

• Run the Xprinter Test utility.

• Check the USB connection and select your printer type.

• Note the local IP address of the computer and the default IP address of the printer.

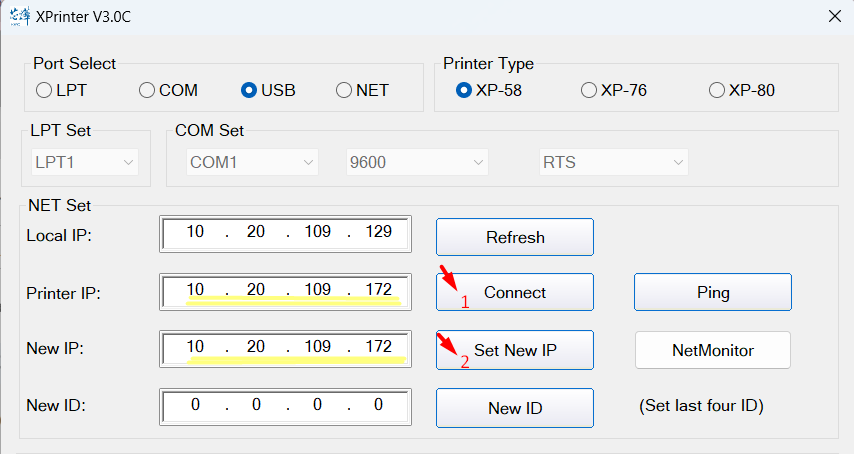

4. Changing the Printer's IP Address:

• Enter the new address in the Printer IP and New IP fields.

• Click "Set New IP", then "Connect".

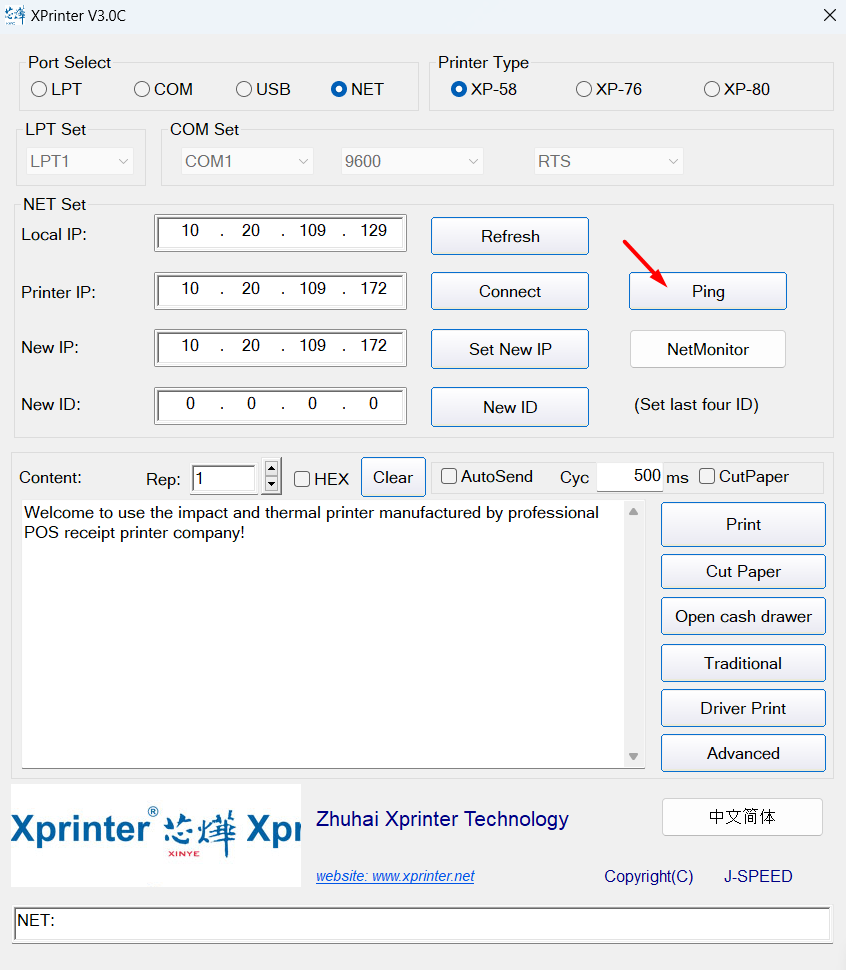

5. Connecting via Ethernet

• Check the Net checkbox.

• Disconnect the USB cable.

• Connect the Ethernet cable (it can be connected immediately or after configuration).

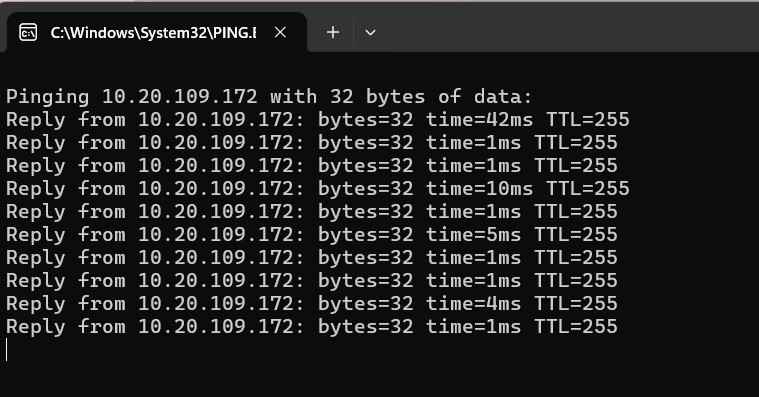

• Click "Ping" to check the connection.

• If the ping is successful, the setup is complete.

6. Checking Printing via Ethernet:

The Xprinter Test utility allows you to check the print:

• Disconnect the USB cable.

• Connect the Ethernet cable.

• Click "Print" — the printer will print the text from the frame.

In most cases, this setup is sufficient.

Advanced Network Configuration (if needed)

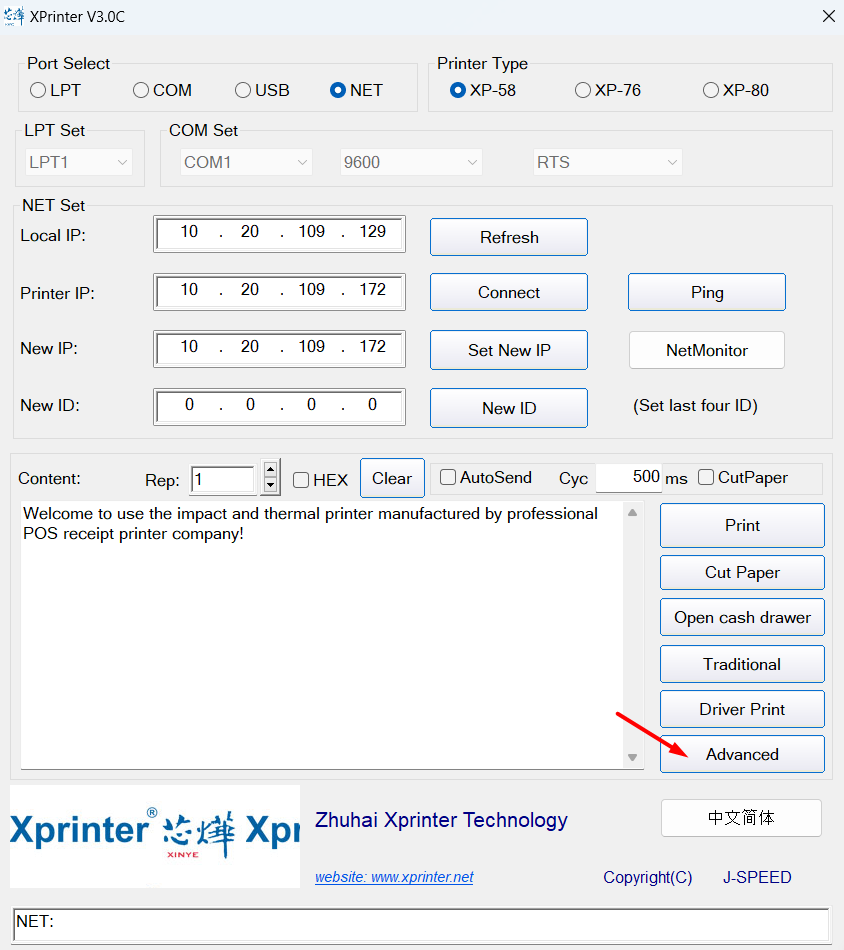

• In Xprinter Test, go to the "Advanced" section.

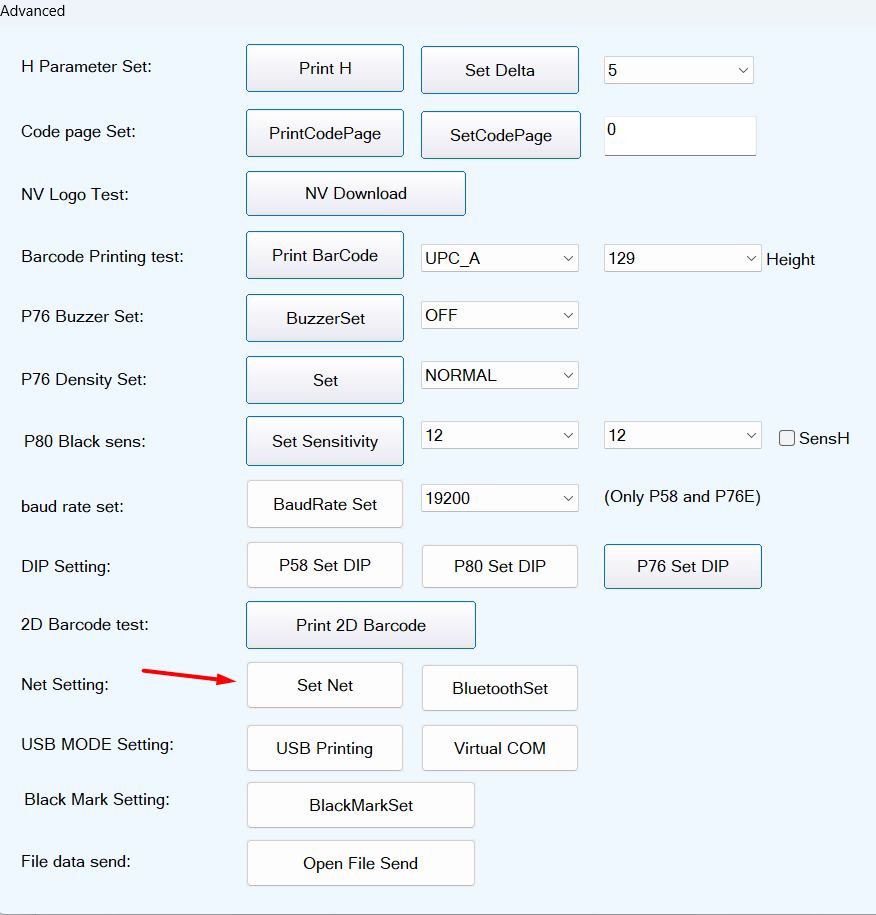

• Click "Net Setting: Set Net".

• Perform the necessary network settings.

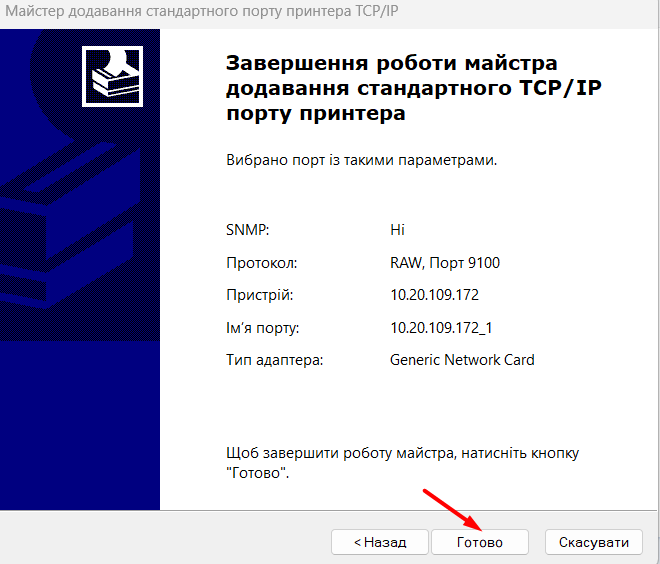

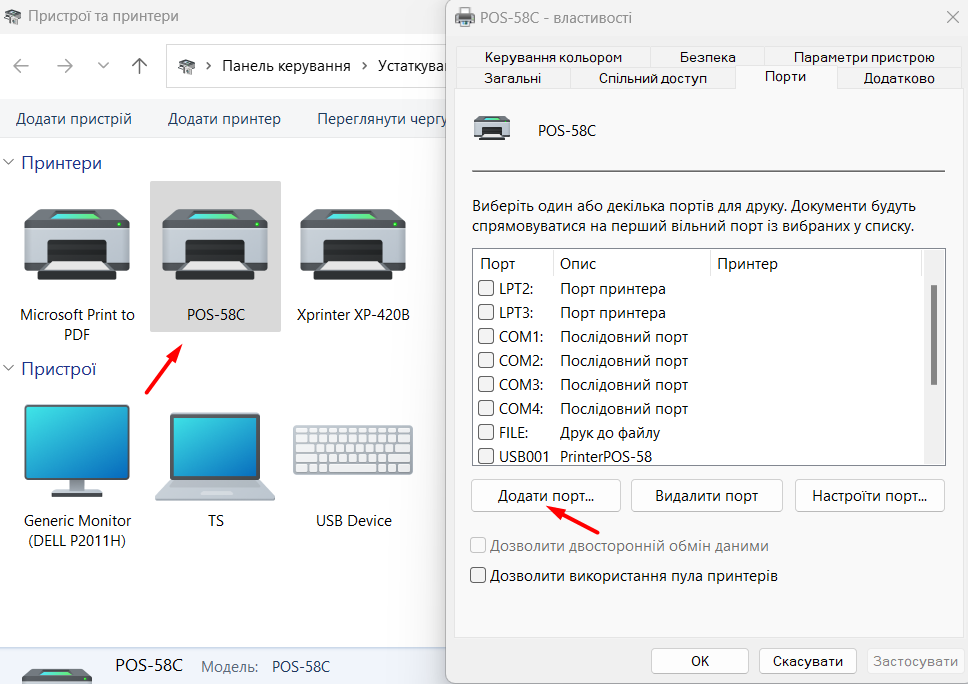

Driver Configuration for TCP/IP Operation:

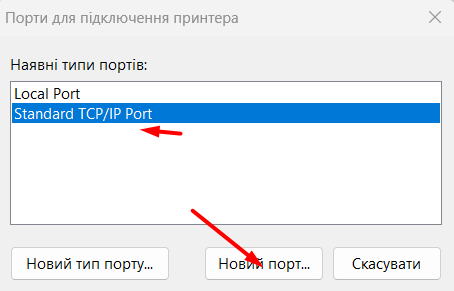

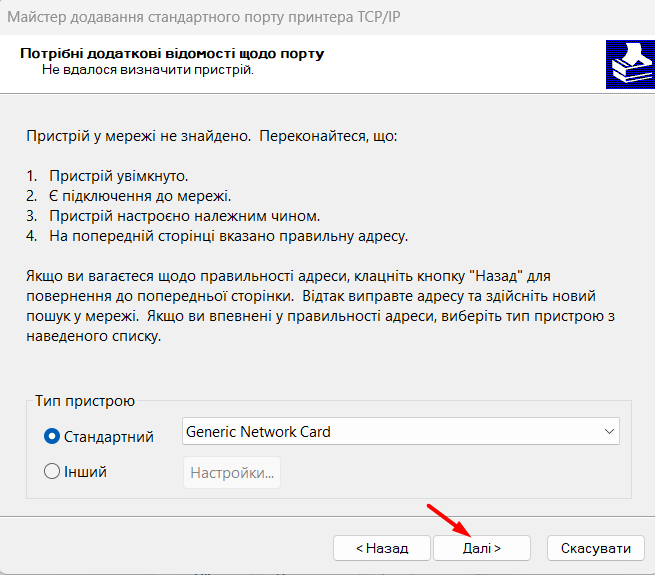

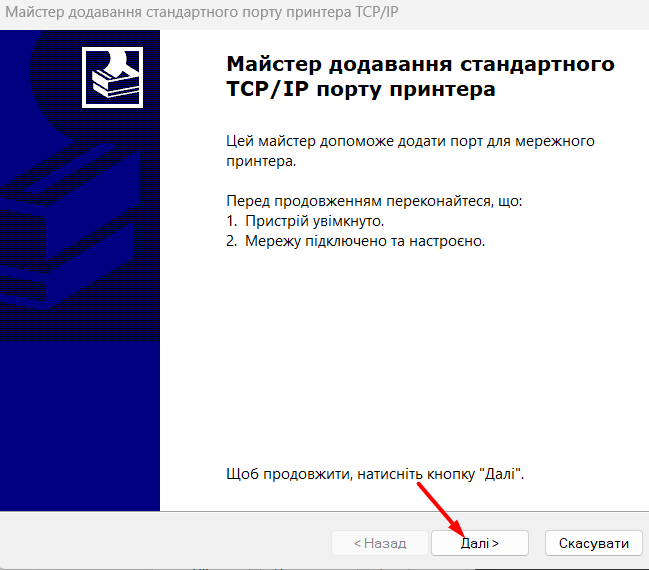

• In the driver, create a new TCP/IP port instead of the USB port.

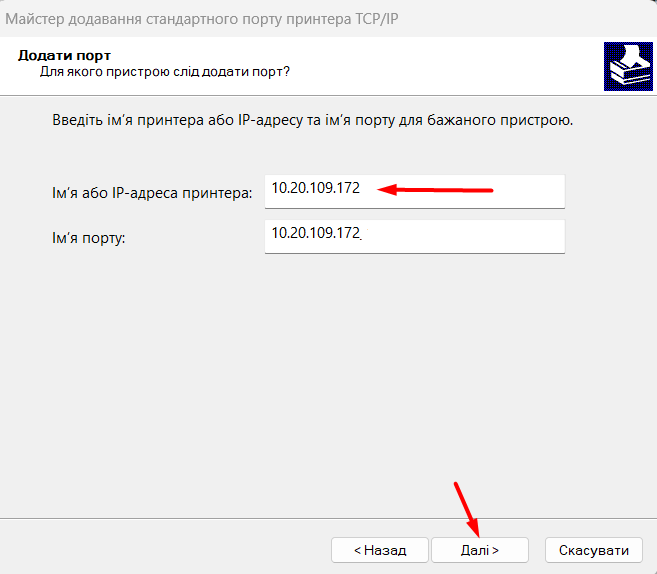

• Specify the IP address you assigned earlier.

Note

• Although the printer will operate on the new IP address and respond to ping, self-testing may not reflect the changes. It is not recommended to verify using self-test.
