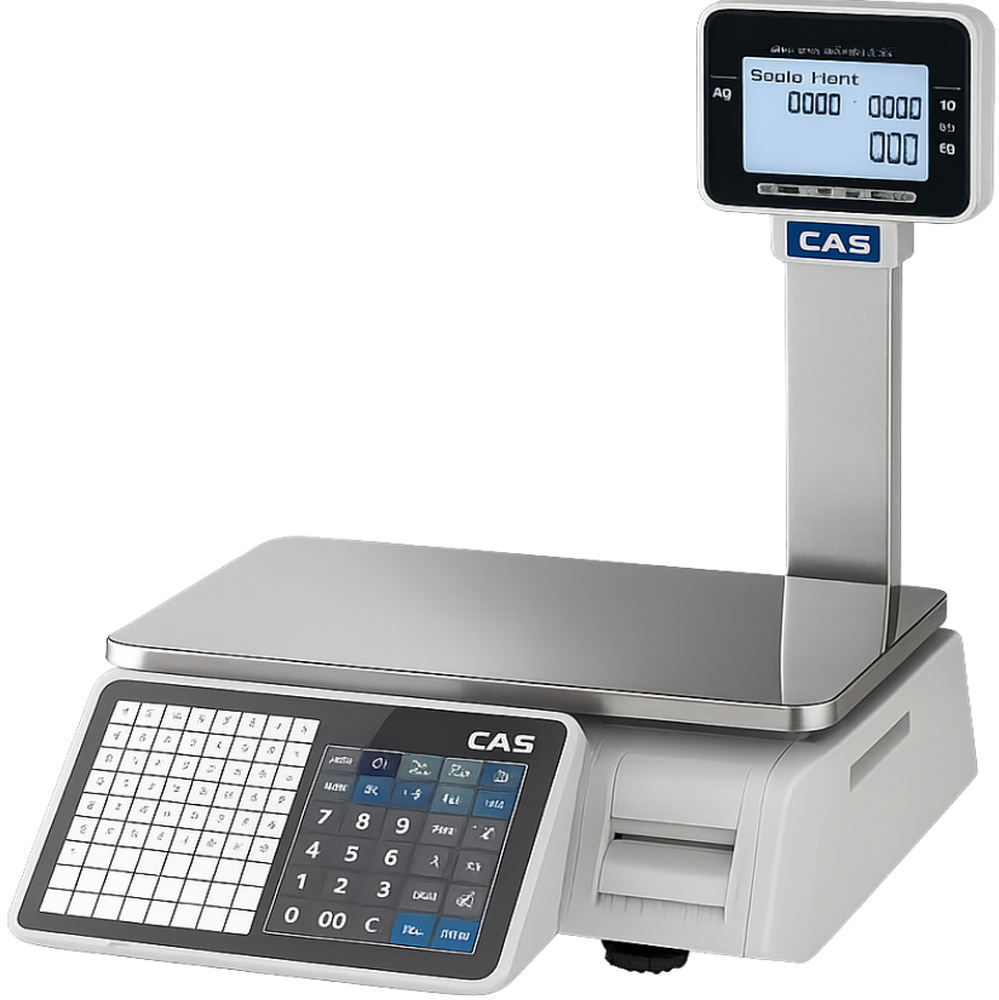

CAS CL3500-15P are retail scales with a built-in thermal printer for weighing, price calculation and label printing for weighted goods. The model uses dual 6/15 kg ranges with 2/5 g division, prints at up to 100 mm/s and stores up to 10,000 PLUs. For use with Torgsoft, products are exported to a file, imported into CL-Works Pro and then transferred to the scales through a network connection.
What are CAS CL3500-15P label printing scales?
CAS CL3500-15P are Class III retail scales with a pole-mounted double-sided LCD and a built-in thermal printer. The model weighs up to 6 kg with 2 g division and from 6 to 15 kg with 5 g division. After a product is selected, the scales determine its weight, calculate the price and print a barcode label for checkout.
Who are CAS CL3500-15P suitable for?
CAS CL3500-15P are suitable for stores and packing areas that need to weigh goods up to 15 kg and print barcode labels immediately.
- Grocery stores and supermarkets for deli, prepared food, fruit, vegetable and other weighted goods departments
- Packing areas where individual packages may weigh more than 6 kg
- Stores that need weighing, price calculation and label printing in one device
- Businesses that need to store up to 10,000 product PLUs in the scales
- Workplaces with a local network and Ethernet connectivity
Not suitable for: goods weighing more than 15 kg require a higher-capacity model. For small portions where 1/2 g division is important, CAS CL3500-6P is a better option. The minimum load of CL3500-15P is 40 g.
Advantages of CAS CL3500-15P
CAS CL3500-15P combine dual-range weighing up to 15 kg, label printing and product memory in one device.
- Dual 6/15 kg weighing ranges with 2/5 g division
- Thermal printing at up to 100 mm/s with 202 dpi resolution
- Support for labels 40–60 mm wide and 30–120 mm high
- Memory for up to 10,000 PLUs and 40 to 72 direct product keys
- 40 built-in and 20 user-defined label formats
- Label field rotation by 90° and 180°
- Pole-mounted double-sided LCD for operator and customer
- Ethernet, RS-232C, USB and PS/2 connectivity
- Support for CL5000 and CL5000J data exchange protocols
How does CAS CL3500-15P differ from CAS CL3500-6P?
CAS CL3500-15P are designed for heavier goods with 6/15 kg ranges, a 40 g minimum load and 2/5 g division. CAS CL3500-6P uses 3/6 kg ranges with a 20 g minimum load and 1/2 g division, making it more suitable for smaller portions. For goods up to 30 kg, the same series includes CAS CL3500-30P.
Where are CAS CL3500-15P used?
CAS CL3500-15P are used in deli departments, fruit and vegetable stores, prepared food areas, packing stations and production facilities for labelling weighted goods. Torgsoft creates a product file for the scales, which is imported into CL-Works Pro and then transferred to the scales. The operator weighs the product, selects the PLU and prints a barcode label for checkout.
What is used with CAS CL3500-15P?
CAS CL3500-15P support labels from 40 to 60 mm wide and from 30 to 120 mm high, so 58×40 mm thermal labels, 1,000 pcs are within the supported range. CL-Works Pro is used to configure the scales and upload product data. For a lower capacity with finer division, choose CAS CL3500-6P; for goods up to 30 kg, consider CAS CL3500-30P.
Questions and answers
How do CAS CL3500-15P work with Torgsoft?
Torgsoft creates a file containing weighted products, which is imported into CL-Works Pro and then transferred from the computer to the scales.
Is CL-Works Pro required for the scales?
CL-Works Pro is used to find the scales on the network, test the connection, manage product data and transfer it to CAS CL3500.
Which labels fit CAS CL3500-15P?
The scales support labels from 40 to 60 mm wide and from 30 to 120 mm high. The 58×40 mm format is within this range.
Which barcodes can CAS CL3500-15P print?
CAS CL3500-15P support UPC, EAN13, EAN13A5, I2OF5, CODE128, CODE39, CODE93, CODABAR and IATA2OF5.
What is included with CAS CL3500-15P?
The basic package includes the scales, weighing platform, power cable and 4 screws for mounting the pole.
What is the warranty for CAS CL3500-15P?
The Torgsoft online store specifies a 12-month warranty for this product.
How to choose label printing scales?
Label printing scales should be selected by maximum and minimum product weight, division, label size and product data transfer method. CAS CL3500-15P use 6/15 kg ranges with a 40 g minimum load and 2/5 g division. For goods up to 6 kg where finer division is required, CL3500-6P is more suitable, while CL3500-30P covers goods up to 30 kg.
