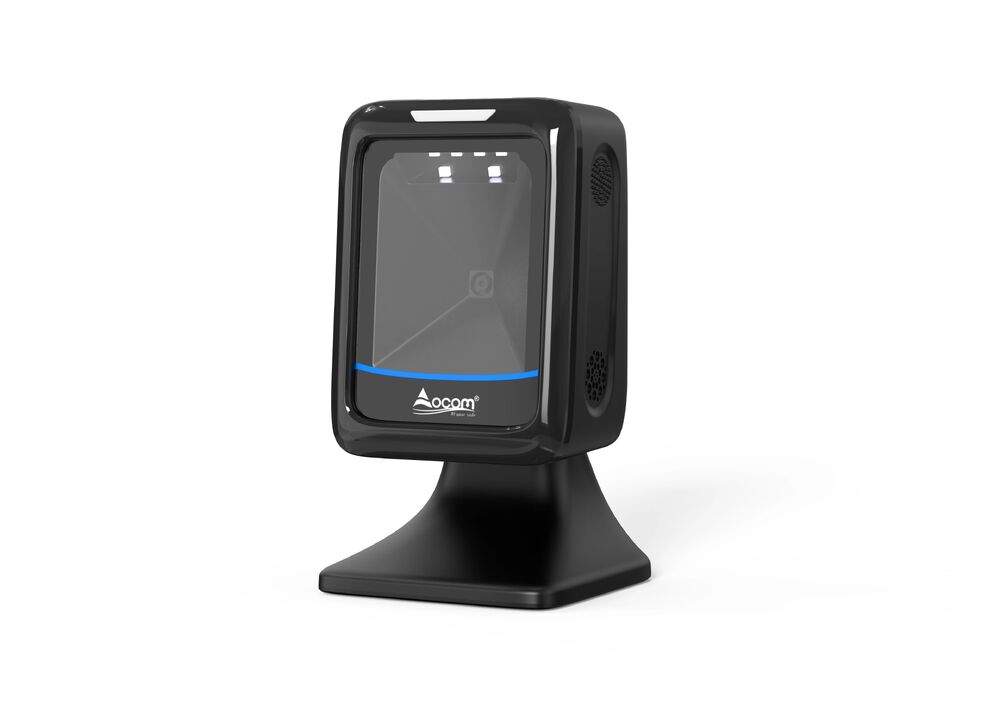

OCOM OCBS-T288 is a wired desktop omnidirectional 2D barcode scanner for a fixed checkout counter. It reads 1D and 2D codes at up to 120 fps and supports QR, Data Matrix, PDF417 and other common symbologies. Thanks to omnidirectional scanning, the cashier does not need to aim precisely or align the barcode: the product only needs to be brought into the scanning area. This reduces unnecessary movements during checkout and helps serve customers faster.
What is the OCOM OCBS-T288 2D wired barcode scanner?
OCOM OCBS-T288 is a desktop omnidirectional scanner for reading linear and two-dimensional barcodes. Its 640x480 CMOS sensor recognizes 1D codes, QR, Data Matrix, PDF417, Micro PDF417, MaxiCode, Aztec and other supported symbologies. Reading accuracy starts at 4 mil for Code 39, while the working reading depth ranges from 10 to 250 mm depending on the barcode.
Who is the OCOM OCBS-T288 suitable for?
OCOM OCBS-T288 is suitable for a fixed workstation where products or codes are regularly brought to the scanner.
- retail checkout counters with a steady flow of customers
- clothing, footwear, cosmetics, stationery and other retail stores
- stores selling excisable goods that need to read Data Matrix codes from electronic excise tax stamps
- order pickup points for reading barcodes and QR codes
- fixed warehouse receiving or dispatch stations
Not suitable for: mobile stocktaking, work between warehouse shelves or other scenarios where an employee needs to move away from the workstation with the scanner. A handheld wireless model is more convenient for such tasks.
Advantages of the OCOM OCBS-T288
- omnidirectional scanning: the barcode does not need to be precisely aligned with the scanner, reducing unnecessary cashier movements and helping serve customers faster
- Data Matrix reading for excisable goods: the scanner reads Data Matrix codes used in electronic excise tax stamps
- reading of 1D and 2D codes, including QR, Data Matrix, PDF417, MaxiCode and Aztec
- 300,000-pixel CMOS sensor with 640x480 resolution
- reading accuracy from 4 mil for Code 39 at PCS 90%
- reading depth from 10 to 250 mm depending on the barcode
- reading angles Roll ±360°, Pitch ±65° and Skew ±60°
- automatic, continuous and command scanning modes
- resistance to repeated drops from 1.5 m onto concrete
How does it differ from the OCOM BT 241 2D?
OCOM OCBS-T288 is a fixed wired omnidirectional scanner for a checkout station: the scanner remains on the counter while the product is brought into its scanning area. The cashier does not need to pick up the device and aim it precisely at every barcode. OCOM BT 241 2D is a handheld wireless scanner with Bluetooth, a USB receiver and a rechargeable battery. T288 is more suitable for continuous work at a fixed checkout counter, while BT 241 is intended for tasks where an employee needs to move around the store or warehouse with the scanner.
Where is the OCOM OCBS-T288 used?
OCOM OCBS-T288 is used at checkout counters, service desks, order pickup points and fixed warehouse workstations. During checkout, the cashier only needs to bring the product barcode into the scanning area. Omnidirectional reading reduces the need to rotate the product or find the exact label position, which is especially useful when scanning many items one after another.
Data Matrix support is also important for stores selling excisable goods. The scanner can read Data Matrix codes from electronic excise tax stamps. Further processing of the stamp data depends on the software and the configured workflow.
What is it used with?
OCOM OCBS-T288 can read barcodes from labels printed with the Xprinter XP-235B label printer. Product marking options include the 40x25 mm thermal label, 1000 pcs. and the larger 58x40 mm thermal label, 1000 pcs..
Questions and answers
Do I need to aim the OCOM OCBS-T288 precisely at the barcode?
Precise aiming and barcode alignment are not required. OCOM OCBS-T288 uses omnidirectional scanning, so the code can be brought into the scanning area at different angles. This simplifies consecutive product scanning at the checkout counter.
Is the OCOM OCBS-T288 suitable for Data Matrix and excisable goods?
Yes. OCOM OCBS-T288 reads Data Matrix codes, including this type of code used in electronic excise tax stamps for excisable goods. The scanner therefore provides the required code-reading capability for such marking. Further processing of electronic excise stamp data depends on the software and the configured workflow.
Does the OCOM OCBS-T288 read QR codes?
Yes. In addition to Data Matrix, the scanner supports QR, Micro QR, PDF417, Micro PDF417, MaxiCode, Aztec and common linear 1D barcodes.
How is the OCOM OCBS-T288 connected?
USB connectivity is specified for this model. The manufacturer also lists RS-232 as a customized version.
Can the OCOM OCBS-T288 scan automatically?
Yes. The manufacturer specifies automatic, continuous and command scanning modes. At a fixed checkout counter, this allows codes to be read by bringing the product to the scanner without constantly triggering it manually.
What is the barcode reading distance?
The specified overall reading depth is 10–250 mm and depends on the type and size of the barcode. The manufacturer lists 40–70 mm for 4 mil Code 39, 10–160 mm for 13 mil UPC/EAN and 10–150 mm for 20 mil QR codes.
How to choose a barcode scanner?
OCOM OCBS-T288 is suitable for a fixed checkout counter when you need to scan 1D and 2D codes continuously without precisely positioning every label. It is also suitable when you need a scanner for Data Matrix and for reading codes from electronic excise tax stamps on excisable goods. If an employee needs to move around the store or warehouse with the scanner, a handheld wireless model is more suitable. If RS-232 is required, check the exact device version separately.
