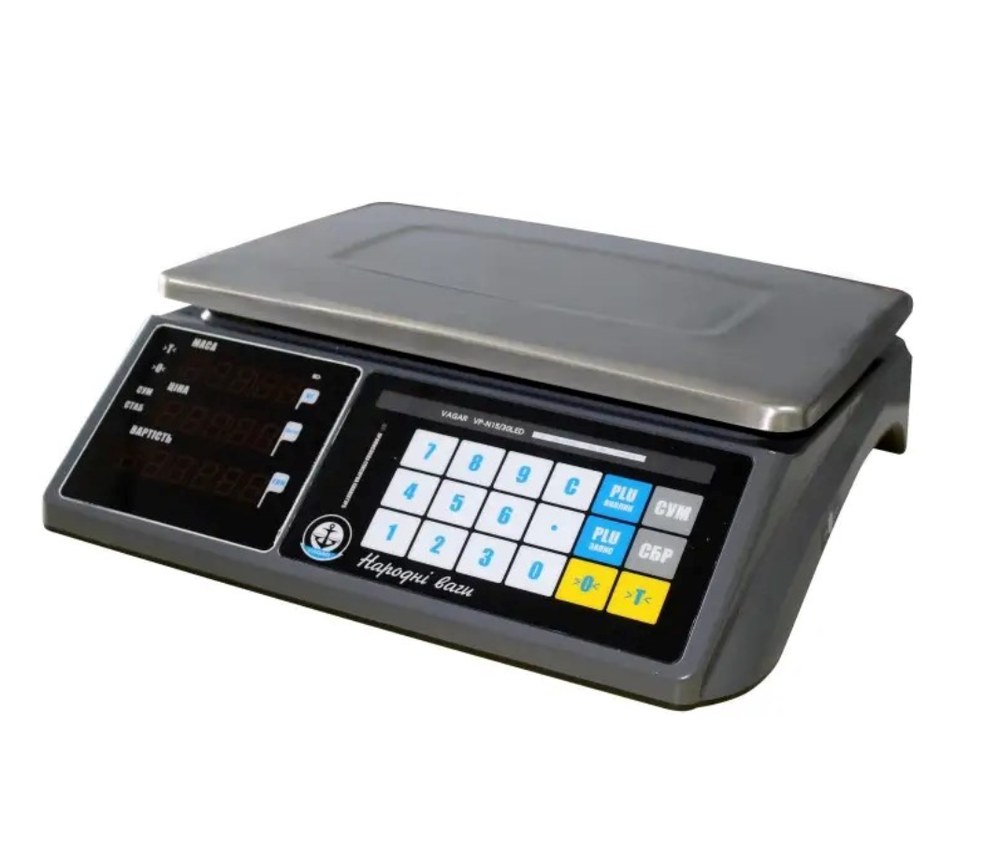

VAGAR VP-N 6/15 RS232 is a desktop retail scale for goods weighing up to 15 kg, with two weighing intervals and 2 g / 5 g divisions. It has a 230×325 mm stainless-steel platform, LED display, touch-sensitive moisture-resistant keypad, IP54 protection and a bidirectional RS232 interface. The scale operates from a 220 V mains supply or built-in battery for up to 20 hours, and an RS-232 COM cable is included.
What is the VAGAR VP-N 6/15 RS232 scale?
VAGAR VP-N 6/15 RS232 is a Class III electronic retail scale with a maximum weighing capacity of 15 kg and a minimum load of 40 g. The division is 2 g in the first interval up to 6 kg and 5 g in the second interval up to 15 kg. Weight, unit price and total cost are shown on an LED display with 14 mm characters.
Who is VAGAR VP-N 6/15 RS232 suitable for?
VAGAR VP-N 6/15 RS232 is suitable for retail and business operations that weigh goods from 40 g to 15 kg and need to transfer weighing results to a computer through RS232.
- grocery, fruit, vegetable and other shops selling goods by weight
- supermarkets and retail counters that calculate product cost by weight
- market and mobile retail where battery operation is useful
- warehouses and receiving areas weighing goods up to 15 kg
- cafes, restaurants, packing areas and small production facilities
Not suitable for: goods heavier than 15 kg, tasks requiring built-in label printing, or workplaces requiring an elevated display pole. A USB to COM adapter is required if the computer has no COM port.
Advantages of VAGAR VP-N 6/15 RS232
VAGAR VP-N 6/15 RS232 combines two weighing intervals, battery operation and RS232 connectivity for transferring weighing results to a computer.
- two weighing intervals with 2 g and 5 g divisions
- 230×325 mm stainless-steel platform
- touch-sensitive moisture-resistant keypad and IP54 protection
- LED display with 14 mm characters
- operation from 220 V mains power or battery for up to 20 hours
- bidirectional RS232 interface for transferring weighing results to a computer
- weighing accumulation, tare function, calibration counter and direct price keys
- RS-232 COM cable included as standard
How does it differ from VAGAR VP 6/15 RS232?
VAGAR VP-N 6/15 RS232 differs from VAGAR VP 6/15 RS232 in the position of the display. The VP-N has its display on the scale body, while the VP has its display on an elevated pole. Both models have 6/15 kg weighing ranges, 2/5 g divisions, a 230×325 mm platform and RS232. The choice depends on whether the indicators should be viewed on the scale body or on an elevated pole.
Where is VAGAR VP-N 6/15 RS232 used?
VAGAR VP-N 6/15 RS232 is used in retail and wholesale trade, supermarkets, markets, warehouses, cafes, restaurants, packing areas and production. Its specified operating temperature range is from -10 to +40 °C, while the built-in battery provides up to 20 hours of autonomous operation.
What is it used with?
VAGAR VP-N 6/15 RS232 includes an RS-232 COM cable for scales for transferring weighing results to a computer. If the computer has no COM port, use a Dynamode USB-SERIAL-2 USB to COM adapter. A checkout workstation with COM connectivity can use the Leabon T630 17.3″ i5 8/128 touchscreen POS terminal. In Torgsoft, automatic weight transfer is configured through the “Electronic scales connection” option.
Questions and answers
What are the maximum and minimum weighing limits?
The maximum weighing capacity is 15 kg, while the minimum load is 40 g.
What is the division of the VAGAR VP-N 6/15?
The division is 2 g in the first interval up to 6 kg and 5 g in the second interval up to 15 kg.
Is the RS232 cable included?
Yes. The package includes an RS232 DB9 female-to-female null modem cable for connecting the scale to a computer through a COM port.
How is the scale connected to a computer and Torgsoft?
The scale transfers data through bidirectional RS232. A USB to COM adapter is required when the computer has no COM port. The “Electronic scales connection” option in Torgsoft is used for automatic weight transfer to the sales window.
Can the scale operate without mains power?
Yes. It has a built-in 4 V / 4 Ah battery, with up to 20 hours of operation specified by the manufacturer.
What is the warranty period?
The Torgsoft product card and the manufacturer’s page both specify a 12-month warranty period.
How to choose retail scales?
Retail scales are selected by maximum and minimum weighing limits, division, platform size, power source and connection interface. VAGAR VP-N 6/15 RS232 is designed for goods up to 15 kg and has a minimum load of 40 g. Heavier products require a model with a higher weighing capacity. If labels must be printed directly by the scale, choose a model with an integrated label printer.
